Journey Logger Node

Overview

This node is a background tool that tracks the user’s journey without affecting scenario logic.

Its purpose is to build a memory of the user’s journey. By connecting these nodes to Action outputs (User Action) or widget outputs (Widget Outcome), you can monitor not just the final outcome, but the specific path taken and results from tracked widgets.

Log Types

User Action — Records specific interactions, such as button clicks or narrative choices. Widget Outcome — Automatically captures results from “Conversation”, “Question” or “Drag to match” widgets.

---

Configuration Fields

Label

Identifies the specific action or event triggered by the user.

• In User Action mode: Records the action that led to the current branch or the text of the button that the user clicked (e.g., “Call the nurse”).
• In Widget Outcome mode: Typically contains the name of the completed widget (e.g., “Symptom Quiz”).

Level

Indicates the progression depth. The system can identify the final outcome of the case by looking for the log with the highest Level value.

Description

This is essential for future AI-driven feedback and debriefing.

• In User Action mode: Explains the clinical significance of a decision. What to write: Explain the consequence of the choice, for example “User identified early signs of confusion, preventing a fall”.
• In Widget Outcome mode: This field is optional. Manual notes added here will be merged with the automated performance data. Future updates may leverage AI to populate this field with personalized insights from the widget outcome.

State

Defines the current status (S, D, R, or N). This field helps categorize performance and can be used to suggest the next case in the curriculum.

State	Name	Description
S	Stabilizing	Positive progress or recovery.
D	Drifting	Uncertain or hesitant progress.
R	Deteriorating	Negative progress or worsening condition.
N	Neutral / Incomplete	No significant change or missing data.

This field is automatically calculated in Widget Outcome mode

Note

The SDRN scale can be replaced by raw percentages or adapted to other scoring models based on curriculum requirements.

---

Log Examples

Log Type	Label	Description (Combined)	State
User Action	Call Doctor	User escalated the situation correctly.	S
Widget Outcome	Vitals Quiz	Author Note: Struggled with BP. (Auto: Score 65%, 2 errors)	R
Widget Outcome	Talk: Trauma	Author Note: Correctly identified patient history. (Auto: Completed in 4 steps)	D
User Action	Routine care	Missed early warning signs, leading to increased safety risks.	R
User Action	Pain Assessment	Incorrect assessment tool used, delaying necessary treatment.	D

Note

For the Conversation widget: to ensure the system correctly tracks user performance, you must select a value for the “Answer Assessment Impact” field for every answer in the widget builder. Without this, the final score and status cannot be calculated accurately.

---

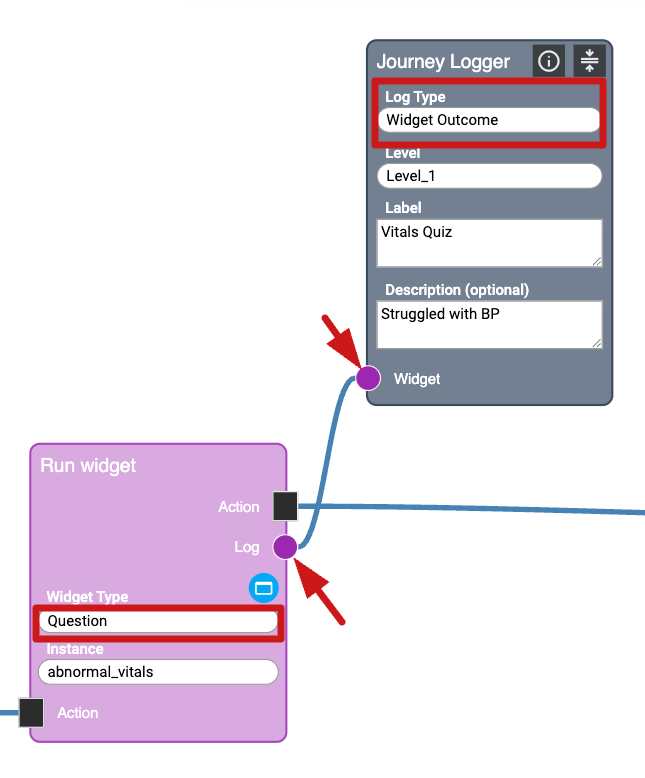

How to Connect

Logging for Widget Outcome requires a specific connection:

• Special “Outcome” sockets appear on the Run Widget node only when a compatible widget (e.g., Conversation, Question or Drag to match) is selected.
• In the Journey Logger node, you must switch the Log Type to Widget Outcome to enable the corresponding input socket.

Note

You can’t log all widget types.

Journey Logger Node Logic

 execute() {
  const logType = this.controls["journeyLoggerControl"].logType;
  if (logType === JourneyLoggerTypeEnum.WidgetOutcome && this.hasInput(InputSocketsEnum.Log)) {
    const connection = this.getConnections().find((conn: Conn) => conn.target === this.id && conn.targetInput === InputSocketsEnum.Log && conn.sourceOutput === OutputSocketsEnum.Log);
    if (connection) {
    const sourceNode = this.getNode(connection.source);
    if (sourceNode && sourceNode instanceof RunWidgetNode && sourceNode.hasOutput(OutputSocketsEnum.Log)) {
      this.logJourney(this.serialize(), sourceNode.serialize());
      this.isPassed = true;
    }
    }
  } else {
    this.logJourney(this.serialize());
    this.isPassed = true;
  }
 }
